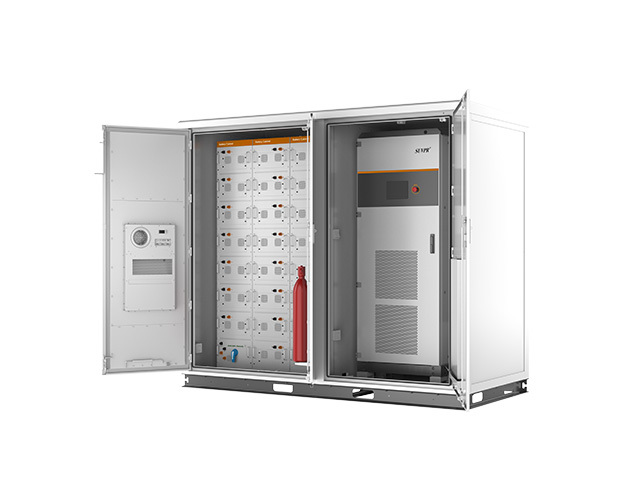

Product Features
| Model | SNE-ESS100A/200A-30K/50K/100K/150K | |
| DC data | ||
| Battery capacity (kWh) | 100KWH~200KWH | |
| Number of battery racks | 1~2 | |
| BMS communication interface | RS485/CAN | |
| DC voltage range(V) | 420V~850V | |
| AC data | ||
| Rated AC power(kW) | 30KW~150KW | |
| Max. AC power(kW) | 30KW-150KW | |
| Rated AC current(A) | 43A~216A | |
| Max. AC current(A) | 48A~238A | |
| DC current component | ＜0.5% | |
| THDi | ＜3% (Rated power) | |
| Rated grid voltage(V) | 400V | |
| Allowable grid voltage range(V) | 320~460 | |
| Rated grid frequency(Hz) | 50/60Hz | |
| Allowable grid frequency range(Hz) | 45-55/55-65Hz | |
| Power factor | 1lagging-1leading | |
| Isolation method | With the isolation | |
| General Data | ||
| Ingress protection | IP54 | |
| Fire extinguishing system | Support | |
| Operating temperature | －30～+55℃ | |
| Dimension W*D*H (mm) | Customization*1,300*2,400 | |
| Weight (kg) | Customization | |
| BMS communication mode | CAN, RS485 | |
| EMS communication mode | RS485, TCP/IP | |
| PCS cooling way | Temperature control intelligent air cooling | |
| Battery cooling way | Air conditioning cooling | |
| Altitude | 4,500m (>3,000 Derating) | |
Simple and flexible
High integration, small size, easy installation, operation and maintenance
IP54 protection grade, stronger environmental adaptability Economical & friendly
Reducing the maximum demand electricity cost, with considerable economic benefits
Supporting peak shaving and valley filling, and dynamic expansion of transformers
Safe and reliable
Built-in fire extinguishing , temperature control, early warning system multiple security guarantees
Intelligent control system, which can be connected to the local monitoring system for unified management and control

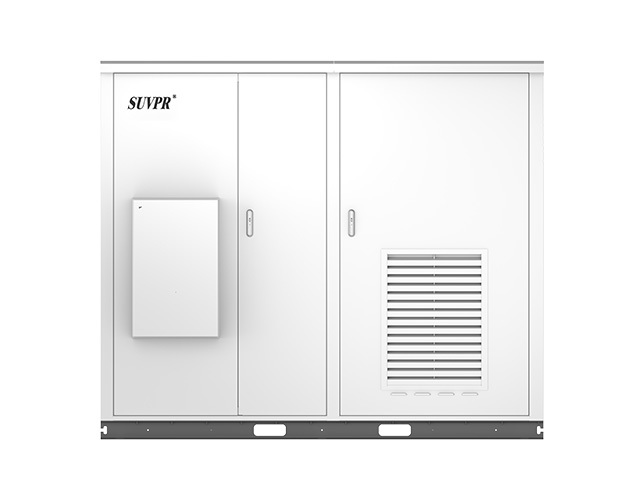

| Model | SNE-ESS100A/200A-30KS/50KS/100KS/150KS | |
| DC data | ||
| Battery capacity (kWh) | 100KWH~200KWH | |
| Number of battery racks | 1~2 | |
| BMS communication interface | RS485/CAN | |
| DC voltage range(V) | 420V~850V | |
| Photovoltaic input | ||
| Max.PV input voltage(V) | 1000VDC | |
| PV input power(kW) | 60KW-240KW | |
| MPPT voltage range(V) | 200VDC-850VDC | |
| MPPT voltage range@full load (V) | 450VDC-850VDC | |
| AC data | ||
| Rated AC power(kW) | 30KW~150KW | |
| Max. AC power(kW) | 30KW-150KW | |
| Rated AC current(A) | 43A~216A | |
| Max. AC current(A) | 48A~238A | |
| DC current component | ＜0.5% | |
| THDi | ＜3% (Rated power) | |
| Rated grid voltage(V) | 400V | |
| Allowable grid voltage range(V) | 320~460 | |
| Rated grid frequency(Hz) | 50/60Hz | |
| Allowable grid frequency range(Hz) | 45-55/55-65Hz | |
| Power factor | 1lagging-1leading | |
| Isolation method | With the isolation | |
| General Data | ||
| Ingress protection | IP54 | |
| Fire extinguishing system | Support | |
| Operating temperature | －30～+55℃ | |
| Dimension W*D*H (mm) | Customization*1,300*2,400 | |
| Weight (kg) | Customization | |
| BMS communication mode | CAN, RS485 | |
| EMS communication mode | RS485, TCP/IP | |
| PCS cooling way | Temperature control intelligent air cooling | |
| Battery cooling way | Air conditioning cooling | |
| Altitude | 4,500m (>3,000 Derating) | |
Simple and flexible
High integration, small size, easy installation, operation and maintenance
IP54 protection grade, stronger environmental adaptability Economical & friendly
Reducing the maximum demand electricity cost, with considerable economic benefits
Supporting peak shaving and valley filling, and dynamic expansion of transformers
Safe and reliable
Built-in fire extinguishing , temperature control, early warning system multiple security guarantees
Intelligent control system, which can be connected to the local monitoring system for unified management and control
