Commercial&Industrial Energy Storage System

Commercial&Industrial Energy Storage System

Commercial&Industrial Energy Storage System


An ESS consists of Power Conditioning System (PCS), Battery Energy Storage System (BESS), Control System and Energy Management System (EMS). These sub-systems work together to regulate and optimize energy consumption, stabilize grids, and therefore improve energy efficiency. Different capacity optional for residential, commercial and industrial application.

Category:Residential Energy Storage Systems

Product Features

Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB3000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 4600 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  3000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/62.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  3000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999



Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB5000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 7000 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  5000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/104.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  5000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999



Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB3000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 4600 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  3000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/62.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  3000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999



Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB5000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 7000 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  5000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/104.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  5000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999








Reliable

* Using high performance DSP,  more stable and effective

* Built-in isolation transformer, strong load adaptability

* Integrated protective and safety features, including AC output breakers, DC disconnect switches

* Fully integrated system, with built-in AC&DC coupled PCS and different battery system

* With HVAC and FSS built in


Flexible

* Modular ACDC/DCDC bi-directional PCS

* Modular designed cabinet or container

* Indoor or Outdoor container design


Compatible

* Compatible with grid-tied and microgrid environments and is used with both battery energy storage

* Integrated grid&off-grid automatic switching components, save the user's system costs

* Flexible communication mode , receive BMS instructions in real time

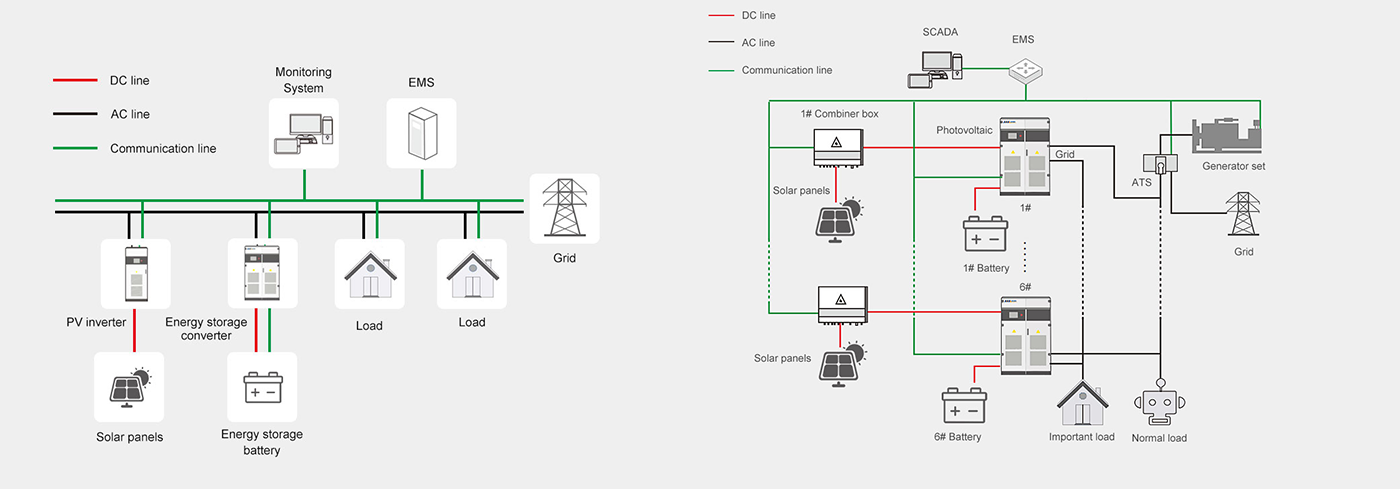

Working Principle










10ft/20ft/40ft Contianer AC-coupled ESS

Compatible with different battery system with storage only PCS/HVAC/Fire System built-in




AESS30-xxx/AESS50-xxx/AESS100-xxx/AESS150-xxx/AESS250-xxx/AESS500-xxx

30KW/50KW/100KW/150KW/250KW/500KW BESS

Battery voltage range:250V-850V/320V-850V/420V-850V/500V-850V dc

AC Voltage: 400Vac/320Vac~460Vac

AC Frequency:50/60Hz

Battery Type: lithium battery, Lead acid battery

Battery Capacity: up to 2MWH

* Outdoor rated

* Built-in bi-directional power conversion system +Battery Energy Storage System

* Flexible energy

* Grid-support & grid-forming functions

* Support various battery

* Pre-engineered system

DOWNLOAD THE DATASHEET








10ft/20ft/40ft Contianer DC-coupled ESS

Compatible with different battery system with hybrid PCS/HVAC/Fire System built-in




DESS30-xxx/DESS50-xxx/DESS100-xxx/DESS150-xxx/DESS250-xxx/DESS500-xxx

30KW/50KW/100KW/150KW/250KW/500KW Hybrid Microgrid

PV input voltage range: 250V-850V/1000Vdc max.

Battery voltage range:250V-850V/320V-850V/420V-850V/500V-850V dc

AC Voltage: 400Vac/320Vac~460Vac

AC Frequency:50/60Hz

Battery Type: lithium battery, Lead acid battery

Battery Capacity: up to 2MWH

* Outdoor rated

* Built-in bi-directional power conversion system +DCDC PV charging System+Battery Energy Storage System

* Flexible energy

* Grid-support & grid-forming functions

* Support various battery

* Pre-engineered system

DOWNLOAD THE DATASHEET
