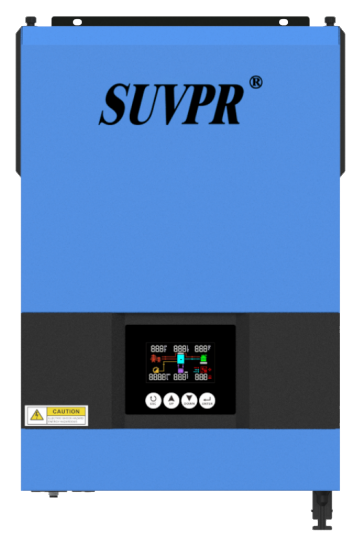

NK-HP series 1.5KW-5KW solar inverter off grid is suitable for non-power area, nomadic area, communication base station, power instability area, island, border post, scenic area management office, newspaper booth, battery pack matching of battery manufacturer, etc. Equipped with LED display, NK-HP series 1.5KW-5KW off grid power inverter supports USB/RS232/Wifi/GPS, with exquisite design and high cost performance.

Category：Off grid solar inverter

Message

Product Features

Product Features

Flexible	Elegant	Reliable
* Wide input voltage range	* Fashion appearance, lightweight and simple	* Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type	* Natural cooling, quiet with only 35dB noise	* Compatible with anti-countercurrent function
	* Compact design with IP65 casing for outdoor use	* Discharge at full power, automatically disconnect the charger when the battery is full
	* Simplified wall mounting

Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management

Technical Data：NK -LB3000P1

DC Input(Solar)

Max. DC power (@cosφ=1)	4600 Wp STC
Max. input voltage	550 V
MPP voltage range / rated input voltage	125 V to 500 V / 360 V
Initial input voltage	120V
Max. input current per string	14A /14A
No. of independent MPPT inputs / strings per MPPT input	2/1

AC Output

Rated power	3000VA
Nominal AC voltage / range	230V / 176V-270V
AC power frequency / range	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max. output current	13 A
Power factor at rated power	1
Adjustable displacement power factor	0.99 lagging to 0.99 leading
THDI	< 3%
Type of grid connection	L+N+PE

Battery Data

Battery Voltage Range	40V-58V
Max. Charge Voltage	58V
Max. Charge/Discharge current	95A/62.2A
Battery Type	Lead-acid/Lithium/LiFePO4 batterty
Communication interface	CAN

Emergency power output(EPS)

Rated power	3000VA
Nominal AC ouput voltage	230Vac
AC power frequency / range	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max. output current	13 A
Automatic switch time	＜20ms
THDU	＜2%
Overload capacity	110%,60S/120%,30S/150%,10S

General Data

Battery charge and discharge efficiency	95%
Max. efficiency / European Efficiency	97.6%/97%
MPTT efficiency	99.90%
Degree of protection	IP65
Noise emission (typical)	< 35 dB(A)@1m
Operating temperature range	-25°C … +60°C
Cooling concept	Natural cooling
Relative humidity (non-condensing)	0-95% no condensation
Max. operating altitude	4000m (>2000m derating)
Dimensions (W x H x D)	550 / 200 / 515 mm
Weight	26 kg
Topology	transformerless
Self-consumption (night)	< 3W

Display and Commumication

Display	LCD
Communication RS485/wifi/GPRS/CAN/DRM	Yes/optional/optional/yes/yes
Certificates and approvals	CE/TUV/SAA/IEC62116:2014/IEC61683:1999

Product Features

Flexible	Elegant	Reliable
* Wide input voltage range	* Fashion appearance, lightweight and simple	* Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type	* Natural cooling, quiet with only 35dB noise	* Compatible with anti-countercurrent function
	* Compact design with IP65 casing for outdoor use	* Discharge at full power, automatically disconnect the charger when the battery is full
	* Simplified wall mounting

Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management

Technical Data：NK -LB5000P1

DC Input(Solar)

Max. DC power (@cosφ=1)	7000 Wp STC
Max. input voltage	550 V
MPP voltage range / rated input voltage	125 V to 500 V / 360 V
Initial input voltage	120V
Max. input current per string	14A /14A
No. of independent MPPT inputs / strings per MPPT input	2/1

AC Output

Rated power	5000VA
Nominal AC voltage / range	230V / 176V-270V
AC power frequency / range	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max. output current	21.7A
Power factor at rated power	1
Adjustable displacement power factor	0.99 lagging to 0.99 leading
THDI	< 3%
Type of grid connection	L+N+PE

Battery Data

Battery Voltage Range	40V-58V
Max. Charge Voltage	58V
Max. Charge/Discharge current	95A/104.2A
Battery Type	Lead-acid/Lithium/LiFePO4 batterty
Communication interface	CAN

Emergency power output(EPS)

Rated power	5000VA
Nominal AC ouput voltage	230Vac
AC power frequency / range	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max. output current	21.7 A
Automatic switch time	＜20ms
THDU	＜2%
Overload capacity	110%,60S/120%,30S/150%,10S

General Data

Battery charge and discharge efficiency	95%
Max. efficiency / European Efficiency	97.6%/97%
MPTT efficiency	99.90%
Degree of protection	IP65
Noise emission (typical)	< 35 dB(A)@1m
Operating temperature range	-25°C … +60°C
Cooling concept	Natural cooling
Relative humidity (non-condensing)	0-95% no condensation
Max. operating altitude	4000m (>2000m derating)
Dimensions (W x H x D)	550 / 200 / 515 mm
Weight	26 kg
Topology	transformerless
Self-consumption (night)	< 3W

Display and Commumication

Display	LCD
Communication RS485/wifi/GPRS/CAN/DRM	Yes/optional/optional/yes/yes
Certificates and approvals	CE/TUV/SAA/IEC62116:2014/IEC61683:1999
