Single phase energy storage system

Single phase energy storage system

Single phase energy storage system

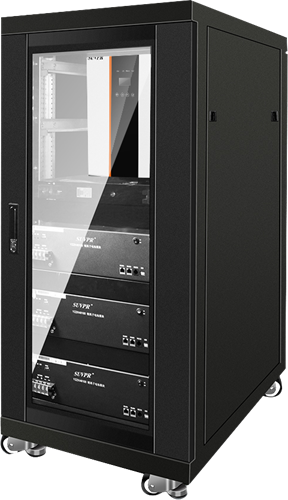

Indoor cabinet ESS compatible with hybrid inverter 5kw, most 19-inch-rack-mounted 48V battery and battery management system(BMS) for residential energy storage system application . Easy to install and dispatch, working with hybrid inverter, and could be used in parallel on AC and/or DC.

Category:Single Phase Energy Storage System

Product Features

Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB3000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 4600 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  3000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/62.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  3000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999



Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB5000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 7000 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  5000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/104.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  5000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999



Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB3000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 4600 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  3000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/62.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  3000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999



Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB5000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 7000 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  5000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/104.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  5000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999








Reliable

* Battery reverse connection protection

* Compatible with anti-countercurrent function

* Pre-tested and assembled, easy to service


Flexible

* Wide input voltage range

* Compatible with lead acid and lithium batteries and other battery type

* Modular design, easy to expand


Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management




1



Working Princile










Residential bess battery energy storage system with 5kw hybrid solar inverter all in one indoor cabinet

* Solar House    * Telecom Base Station    * Solar Plus Storage

* Farm    * Residential Rooftop    * Field Power Supply




XT-LB3000P1/XT-LB3600P1/XT-LB4000P1/XT-LB4600P1/XT-LB5000P1/XT-LB6000P1

Single phase Residential ESS 3KW/3.6K/4KW/4.6K/5KW/6KW

MPPT voltage range / rated input voltage:125 V to 500 V

Battery Voltage: 40V-58Vdc

AC voltage:230Vac/176V-270V

Frquency:50/60Hz

Battery Type: lithium battery

Battery Capacity: up to 30KWH

DOWNLOAD THE DATASHEET
