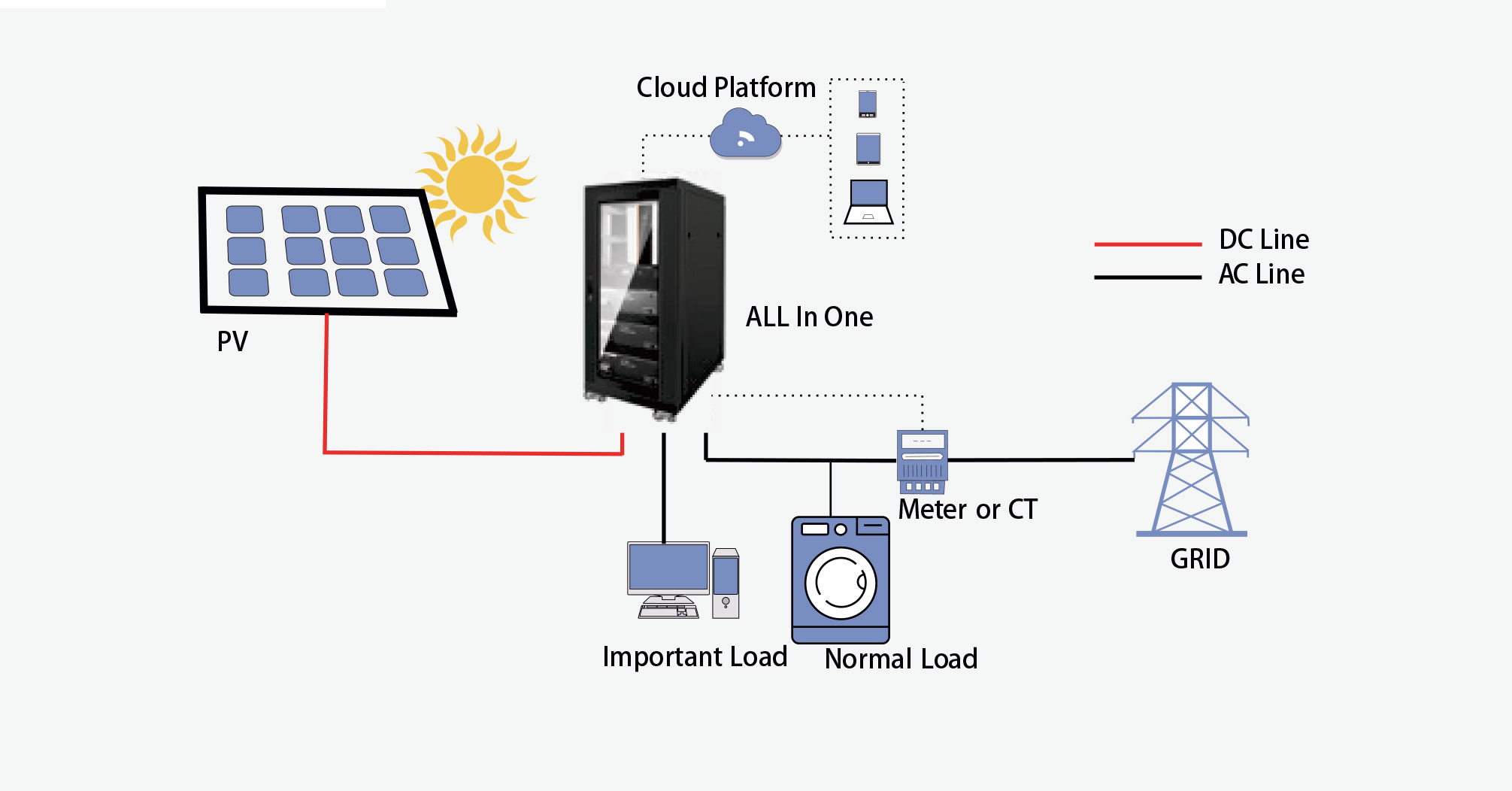

Indoor cabinet ESS compatible with three phase 8kw hybrid inverter and 10kw hybrid inverter, most 19-inch-rack-mounted battery and battery management system(BMS) for residential energy storage system application . It's hybrid solar system for home, easy to install and dispatch, working with hybrid grid tie inverter, and could be used in parallel on AC and/or DC.

Category：Single Phase Energy Storage System

Message

Product Features

Product Features

Flexible	Elegant	Reliable
* Wide input voltage range	* Fashion appearance, lightweight and simple	* Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type	* Natural cooling, quiet with only 35dB noise	* Compatible with anti-countercurrent function
	* Compact design with IP65 casing for outdoor use	* Discharge at full power, automatically disconnect the charger when the battery is full
	* Simplified wall mounting

Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management

Technical Data：NK -LB3000P1

DC Input(Solar)

Max. DC power (@cosφ=1)	4600 Wp STC
Max. input voltage	550 V
MPP voltage range / rated input voltage	125 V to 500 V / 360 V
Initial input voltage	120V
Max. input current per string	14A /14A
No. of independent MPPT inputs / strings per MPPT input	2/1

AC Output

Rated power	3000VA
Nominal AC voltage / range	230V / 176V-270V
AC power frequency / range	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max. output current	13 A
Power factor at rated power	1
Adjustable displacement power factor	0.99 lagging to 0.99 leading
THDI	< 3%
Type of grid connection	L+N+PE

Battery Data

Battery Voltage Range	40V-58V
Max. Charge Voltage	58V
Max. Charge/Discharge current	95A/62.2A
Battery Type	Lead-acid/Lithium/LiFePO4 batterty
Communication interface	CAN

Emergency power output(EPS)

Rated power	3000VA
Nominal AC ouput voltage	230Vac
AC power frequency / range	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max. output current	13 A
Automatic switch time	＜20ms
THDU	＜2%
Overload capacity	110%,60S/120%,30S/150%,10S

General Data

Battery charge and discharge efficiency	95%
Max. efficiency / European Efficiency	97.6%/97%
MPTT efficiency	99.90%
Degree of protection	IP65
Noise emission (typical)	< 35 dB(A)@1m
Operating temperature range	-25°C … +60°C
Cooling concept	Natural cooling
Relative humidity (non-condensing)	0-95% no condensation
Max. operating altitude	4000m (>2000m derating)
Dimensions (W x H x D)	550 / 200 / 515 mm
Weight	26 kg
Topology	transformerless
Self-consumption (night)	< 3W

Display and Commumication

Display	LCD
Communication RS485/wifi/GPRS/CAN/DRM	Yes/optional/optional/yes/yes
Certificates and approvals	CE/TUV/SAA/IEC62116:2014/IEC61683:1999

Product Features

Flexible	Elegant	Reliable
* Wide input voltage range	* Fashion appearance, lightweight and simple	* Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type	* Natural cooling, quiet with only 35dB noise	* Compatible with anti-countercurrent function
	* Compact design with IP65 casing for outdoor use	* Discharge at full power, automatically disconnect the charger when the battery is full
	* Simplified wall mounting

Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management

Technical Data：NK -LB5000P1

DC Input(Solar)

Max. DC power (@cosφ=1)	7000 Wp STC
Max. input voltage	550 V
MPP voltage range / rated input voltage	125 V to 500 V / 360 V
Initial input voltage	120V
Max. input current per string	14A /14A
No. of independent MPPT inputs / strings per MPPT input	2/1

AC Output

Rated power	5000VA
Nominal AC voltage / range	230V / 176V-270V
AC power frequency / range	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max. output current	21.7A
Power factor at rated power	1
Adjustable displacement power factor	0.99 lagging to 0.99 leading
THDI	< 3%
Type of grid connection	L+N+PE

Battery Data

Battery Voltage Range	40V-58V
Max. Charge Voltage	58V
Max. Charge/Discharge current	95A/104.2A
Battery Type	Lead-acid/Lithium/LiFePO4 batterty
Communication interface	CAN

Emergency power output(EPS)

Rated power	5000VA
Nominal AC ouput voltage	230Vac
AC power frequency / range	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max. output current	21.7 A
Automatic switch time	＜20ms
THDU	＜2%
Overload capacity	110%,60S/120%,30S/150%,10S

General Data

Battery charge and discharge efficiency	95%
Max. efficiency / European Efficiency	97.6%/97%
MPTT efficiency	99.90%
Degree of protection	IP65
Noise emission (typical)	< 35 dB(A)@1m
Operating temperature range	-25°C … +60°C
Cooling concept	Natural cooling
Relative humidity (non-condensing)	0-95% no condensation
Max. operating altitude	4000m (>2000m derating)
Dimensions (W x H x D)	550 / 200 / 515 mm
Weight	26 kg
Topology	transformerless
Self-consumption (night)	< 3W

Display and Commumication

Display	LCD
Communication RS485/wifi/GPRS/CAN/DRM	Yes/optional/optional/yes/yes
Certificates and approvals	CE/TUV/SAA/IEC62116:2014/IEC61683:1999

Product Features

Flexible	Elegant	Reliable
* Wide input voltage range	* Fashion appearance, lightweight and simple	* Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type	* Natural cooling, quiet with only 35dB noise	* Compatible with anti-countercurrent function
	* Compact design with IP65 casing for outdoor use	* Discharge at full power, automatically disconnect the charger when the battery is full
	* Simplified wall mounting

Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management

Technical Data：NK -LB3000P1

DC Input(Solar)

Max. DC power (@cosφ=1)	4600 Wp STC
Max. input voltage	550 V
MPP voltage range / rated input voltage	125 V to 500 V / 360 V
Initial input voltage	120V
Max. input current per string	14A /14A
No. of independent MPPT inputs / strings per MPPT input	2/1

AC Output

Rated power	3000VA
Nominal AC voltage / range	230V / 176V-270V
AC power frequency / range	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max. output current	13 A
Power factor at rated power	1
Adjustable displacement power factor	0.99 lagging to 0.99 leading
THDI	< 3%
Type of grid connection	L+N+PE

Battery Data

Battery Voltage Range	40V-58V
Max. Charge Voltage	58V
Max. Charge/Discharge current	95A/62.2A
Battery Type	Lead-acid/Lithium/LiFePO4 batterty
Communication interface	CAN

Emergency power output(EPS)

Rated power	3000VA
Nominal AC ouput voltage	230Vac
AC power frequency / range	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max. output current	13 A
Automatic switch time	＜20ms
THDU	＜2%
Overload capacity	110%,60S/120%,30S/150%,10S

General Data

Battery charge and discharge efficiency	95%
Max. efficiency / European Efficiency	97.6%/97%
MPTT efficiency	99.90%
Degree of protection	IP65
Noise emission (typical)	< 35 dB(A)@1m
Operating temperature range	-25°C … +60°C
Cooling concept	Natural cooling
Relative humidity (non-condensing)	0-95% no condensation
Max. operating altitude	4000m (>2000m derating)
Dimensions (W x H x D)	550 / 200 / 515 mm
Weight	26 kg
Topology	transformerless
Self-consumption (night)	< 3W

Display and Commumication

Display	LCD
Communication RS485/wifi/GPRS/CAN/DRM	Yes/optional/optional/yes/yes
Certificates and approvals	CE/TUV/SAA/IEC62116:2014/IEC61683:1999

Product Features

Flexible	Elegant	Reliable
* Wide input voltage range	* Fashion appearance, lightweight and simple	* Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type	* Natural cooling, quiet with only 35dB noise	* Compatible with anti-countercurrent function
	* Compact design with IP65 casing for outdoor use	* Discharge at full power, automatically disconnect the charger when the battery is full
	* Simplified wall mounting

Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management

Technical Data：NK -LB5000P1

DC Input(Solar)

Max. DC power (@cosφ=1)	7000 Wp STC
Max. input voltage	550 V
MPP voltage range / rated input voltage	125 V to 500 V / 360 V
Initial input voltage	120V
Max. input current per string	14A /14A
No. of independent MPPT inputs / strings per MPPT input	2/1

AC Output

Rated power	5000VA
Nominal AC voltage / range	230V / 176V-270V
AC power frequency / range	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max. output current	21.7A
Power factor at rated power	1
Adjustable displacement power factor	0.99 lagging to 0.99 leading
THDI	< 3%
Type of grid connection	L+N+PE

Battery Data

Battery Voltage Range	40V-58V
Max. Charge Voltage	58V
Max. Charge/Discharge current	95A/104.2A
Battery Type	Lead-acid/Lithium/LiFePO4 batterty
Communication interface	CAN

Emergency power output(EPS)

Rated power	5000VA
Nominal AC ouput voltage	230Vac
AC power frequency / range	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max. output current	21.7 A
Automatic switch time	＜20ms
THDU	＜2%
Overload capacity	110%,60S/120%,30S/150%,10S

General Data

Battery charge and discharge efficiency	95%
Max. efficiency / European Efficiency	97.6%/97%
MPTT efficiency	99.90%
Degree of protection	IP65
Noise emission (typical)	< 35 dB(A)@1m
Operating temperature range	-25°C … +60°C
Cooling concept	Natural cooling
Relative humidity (non-condensing)	0-95% no condensation
Max. operating altitude	4000m (>2000m derating)
Dimensions (W x H x D)	550 / 200 / 515 mm
Weight	26 kg
Topology	transformerless
Self-consumption (night)	< 3W
