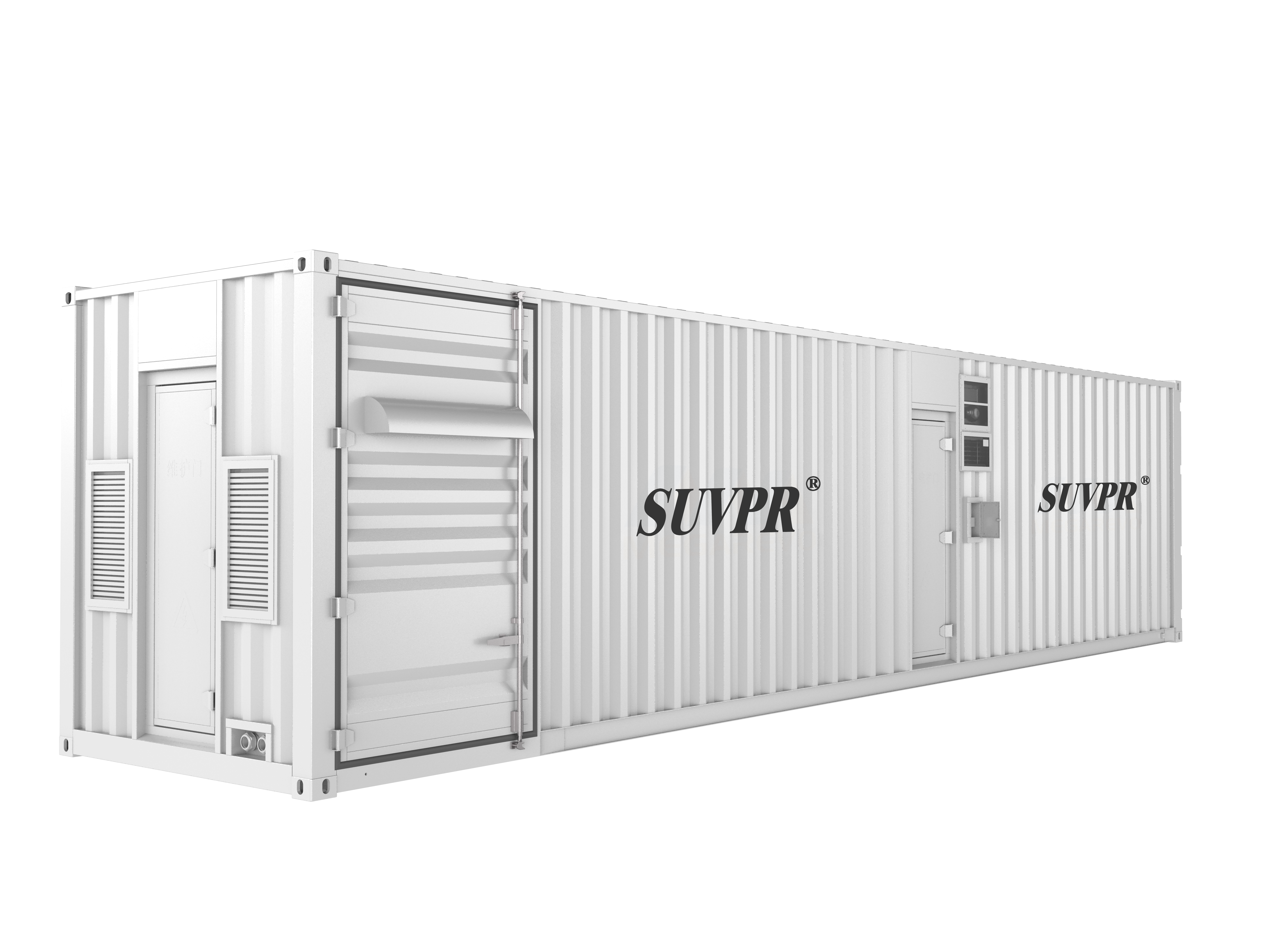

AC-coupled 40ft Container Energy Storage System

SNE-RESS500K-1106M | 500KW | 1.106MWH | Energy Storage System | Lithuim Battery;Designed for large-scale C&I and public utilities

AC-coupled 40ft Container Energy Storage System

SNE-RESS500K-1106M | 500KW | 1.106MWH | Energy Storage System | Lithuim Battery;Designed for large-scale C&I and public utilities

AC-coupled 40ft Container Energy Storage System

SNE-RESS500K-1106M | 500KW | 1.106MWH | Energy Storage System | Lithuim Battery;Designed for large-scale C&I and public utilities

500KW/1.106Wh outdoor 40ft container ESS for large-scale commercial and industrial energy storage projects. The system DC side consists of eight 138kWh modular lithium battery energy units, and the AC side uses SNE series PCS, through the EMS operation strategy, interacts with the grid in a friendly way, and provides power support for customers during power limited period.

Category:Product

Category:Commercial&Industrial Energy Storage Inverter

Product Features

Flexible configuration


Standardized design, easy to expand and maintain;Independent air duct design, more stable operation

Safe and reliable


Support battery management system and comprehensive thermal management;Improve the fault classification protection mechanism

Abundant configuration


Diversified selection of equipment capacity;Can be integrated with monitoring system
Benefits
● Integrated design for easy transportation and installation
● Reduce system operating costs
● Can be used for a variety of backup purposes
● Turnkey projects
● Support 7*24 remote service
Benefits
● Power shortage areas ●Off-grid island ● Industrial &commercial energy storage ● Off-grid mine ● Nomadic farm
Benefits
SNE-RESS500K-1106M | 500KW | 1.106MWH | Energy Storage System | Lithuim Battery;Designed for large-scale C&I and public utilities

Application
● Integrated design for easy transportation and installation
● Reduce system operating costs
● Can be used for a variety of backup purposes
● Turnkey projects
● Support 7*24 remote service
Application
● Power shortage areas ●Off-grid island ● Industrial &commercial energy storage ● Off-grid mine ● Nomadic farm
Application
SNE-RESS500K-1106M | 500KW | 1.106MWH | Energy Storage System | Lithuim Battery;Designed for large-scale C&I and public utilities
Model SNE-RESS500A-150K/250K
DC data
Battery capacity (kWh) 500KWH
Number of battery racks 4
BMS communication interface RS485/CAN
DC voltage range(V) 420V~850V
AC data
Rated AC power(kW) 150KW~250KW
Max. AC power(kW) 150KW-250KW
Rated AC current(A) 216A~361A
Max. AC current(A) 238A~397A
DC current component <0.5%
THDi <3% (Rated power)
Rated grid voltage(V) 400V
Allowable grid voltage range(V) 320~460
Rated grid frequency(Hz) 50/60Hz
Allowable grid frequency range(Hz) 45-55/55-65Hz
Power factor 1lagging-1leading
Isolation method With the isolation
General Data
Ingress protection IP54
Fire extinguishing system Support
Operating temperature -30~+55℃
Dimension W*D*H (mm) 6058×2591×2438mm / 20*8.6*8 ft
Weight (kg) Customization
BMS communication mode CAN, RS485
EMS communication mode RS485, TCP/IP
PCS cooling way Temperature control intelligent air cooling
Battery cooling way Air conditioning cooling
Altitude 4,500m (>3,000 Derating)
Relative humidity 0 ~95% non-condensing
