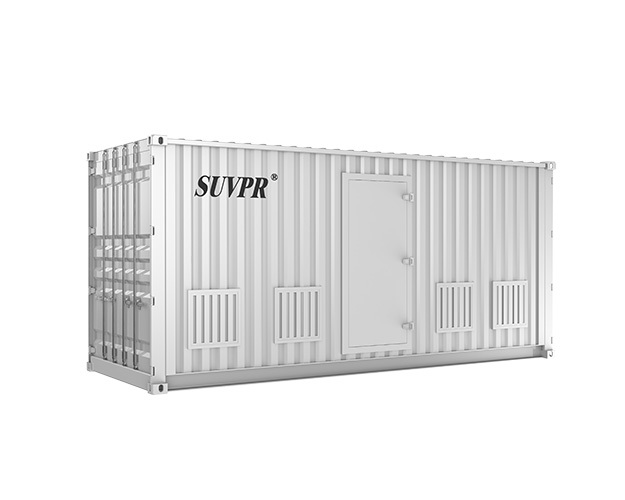

SNE-ESS 20ft AC-coupled 20ft Container Energy storage system

SNE-ESS 20ft AC-coupled 20ft Container Energy storage system

SNE-ESS 20ft AC-coupled 20ft Container Energy storage system


Category:Commercial&Industrial Energy Storage Inverter

Product Features

Model SNE-RESS500A-150K/250K
DC data
Battery capacity (kWh) 500KWH
Number of battery racks 4
BMS communication interface RS485/CAN
DC voltage range(V) 420V~850V
AC data
Rated AC power(kW) 150KW~250KW
Max. AC power(kW) 150KW-250KW
Rated AC current(A) 216A~361A
Max. AC current(A) 238A~397A
DC current component <0.5%
THDi <3% (Rated power)
Rated grid voltage(V) 400V
Allowable grid voltage range(V) 320~460
Rated grid frequency(Hz) 50/60Hz
Allowable grid frequency range(Hz) 45-55/55-65Hz
Power factor 1lagging-1leading
Isolation method With the isolation
General Data
Ingress protection IP54
Fire extinguishing system Support
Operating temperature -30~+55℃
Dimension W*D*H (mm) 6058×2591×2438mm / 20*8.6*8 ft
Weight (kg) Customization
BMS communication mode CAN, RS485
EMS communication mode RS485, TCP/IP
PCS cooling way Temperature control intelligent air cooling
Battery cooling way Air conditioning cooling
Altitude 4,500m (>3,000 Derating)
Relative humidity 0 ~95% non-condensing

  Simple and flexible

  High integration, small size, easy installation,operation and maintenance

  IP54 protection grade, stronger environmental adaptability

  Economical & friendly

  Reducing the maximum demand electricity cost, withconsiderable economic benefits

  Supporting peak shaving and valley filling, and dynamic expansion of transformers

  Safe and reliable

  Built-in fire extinguishing , temperature control, early warning system multiple security guarantees

  Intelligent control system, which can be connected to the local monitoring system for unified management and control



Model SNE-RESS500A-150KS/250KS
DC data
Battery capacity (kWh) 500KWH
Number of battery racks 4
BMS communication interface RS485/CAN
DC voltage range(V) 420V~850V
Photovoltaic input
Max.PV input voltage(V) 1000VDC
Max.PV power(kW) 120KW-360KW
MPPT voltage range(V) 200VDC-850VDC
MPPT voltage range@full load (V) 450VDC-850VDC
AC data
Rated AC power(kW) 150KW~250KW
Max. AC power(kW) 150KW-250KW
Rated AC current(A) 216A~361A
Max. AC current(A) 238A~397A
DC current component <0.5%
THDi <3% (Rated power)
Rated grid voltage(V) 400V
Allowable grid voltage range(V) 320~460
Rated grid frequency(Hz) 50/60Hz
Allowable grid frequency range(Hz) 45-55/55-65Hz
Power factor 1lagging-1leading
Isolation method With the isolation
General Data
Ingress protection IP54
Fire extinguishing system Support
Operating temperature -30~+55℃
Dimension W*D*H (mm) 6058×2591×2438mm / 20*8.6*8 ft
Weight (kg) Customization
BMS communication mode CAN, RS485
EMS communication mode RS485, TCP/IP
PCS cooling way Temperature control intelligent air cooling
Battery cooling way Air conditioning cooling
Altitude 4,500m (>3,000 Derating)
Relative humidity 0 ~95% non-condensing

  Simple and flexible

  High integration, small size, easy installation, operation and maintenance

  IP54 protection grade, stronger environmental adaptability

  Economical & friendly

  Reducing the maximum demand electricity cost, with considerable economic benefits

  Supporting peak shaving and valley filling, and dynamic expansion of transformers

  Safe and reliable

  Built-in fire extinguishing , temperature control, early warning system multiple security guarantees

  Intelligent control system, which can be connected to the local monitoring system for unified management and control
