Three Phase Energy Storage System

SNE8K/10K/12K-G3-AIN | 8/10/12KW | Three Phase | 10KWH/15KWH/20KWH | BYD Lithium ion Battery | All in one

Three Phase Energy Storage System

SNE8K/10K/12K-G3-AIN | 8/10/12KW | Three Phase | 10KWH/15KWH/20KWH | BYD Lithium ion Battery | All in one

Three Phase Energy Storage System

SNE8K/10K/12K-G3-AIN | 8/10/12KW | Three Phase | 10KWH/15KWH/20KWH | BYD Lithium ion Battery | All in one

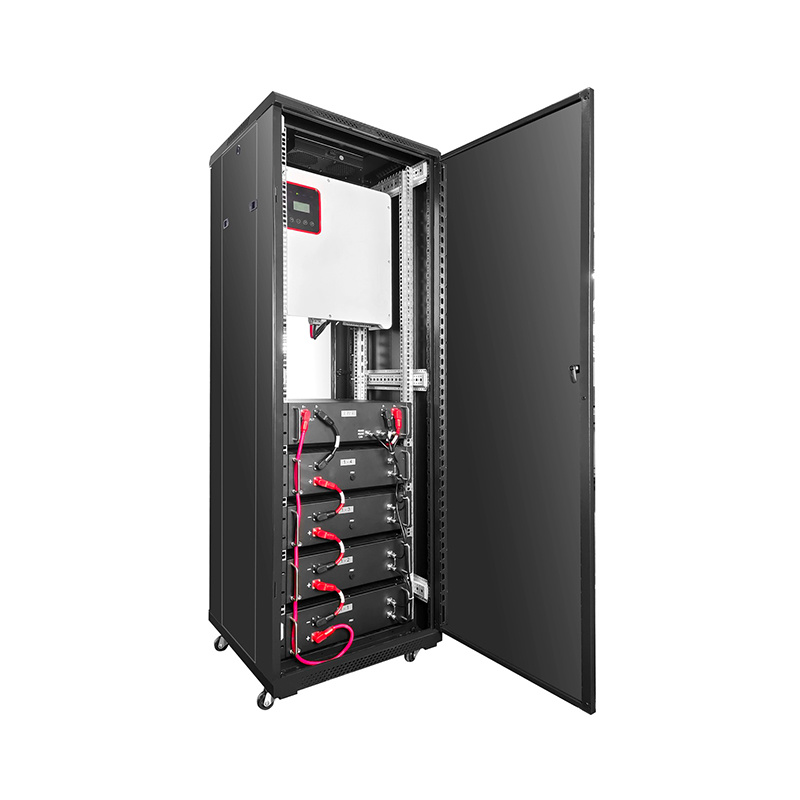

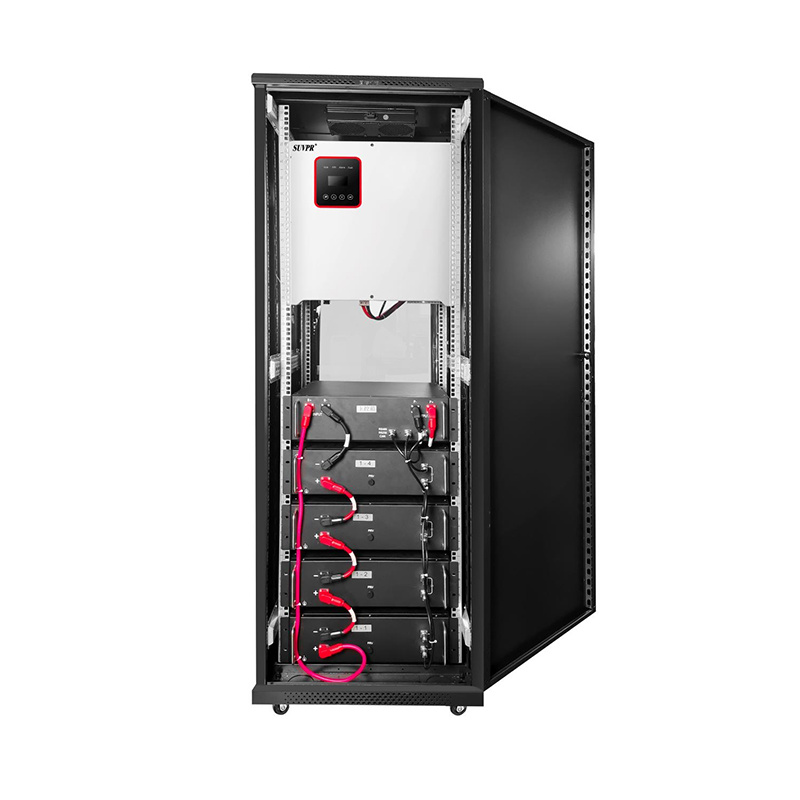

SUVPR Indoor cabinet all-in-one ESS compatible with three phase 8kw/10KW/12KW hybrid solar inverter, BYD 50AH vehicle grade LiFePO4 battery and battery management system(BMS) for residential energy storage system application .

Category:Residential Energy Storage Systems

battery storage inverter

3 phase hybrid inverter

hybrid inverter solar system

solar systems

inverter solar

energy storage system

Product Features

Flexible configuration


● All in one hybrid energy storage system, easy installation and operation;
● Stackable design, support battery capacity expansion;

Safe and reliable


●BYD vehicle grade battery cell (LFP), more safety, longer life cycle, more usable energy;
●System cycle life ≥ 6000 times;
●Support peak load shifting and important load backup;

Advanced


●Integrated BMS management system to support intelligent management;
●Compatible with CANbus/RS485 communication interface;
●It is more economical to support multiple operating modes;
Benefits
●Integrated design for easy installation
●Highly cost-effective
●Support mainstream hybrid inverters
●Capacity can be flexibly configured
●Support 7*24 remote service
Benefits
●Solar House
●Telecom Base Station
●Solar Plus Storage
●Farm
●Residential Rooftop
●Field Power Supply
Benefits
SNE8K/10K/12K-G3-AIN | 8/10/12KW | Three Phase | 10KWH/15KWH/20KWH | BYD Lithium ion Battery | All in one

Application
●Integrated design for easy installation
●Highly cost-effective
●Support mainstream hybrid inverters
●Capacity can be flexibly configured
●Support 7*24 remote service
Application
●Solar House
●Telecom Base Station
●Solar Plus Storage
●Farm
●Residential Rooftop
●Field Power Supply
Application
SNE8K/10K/12K-G3-AIN | 8/10/12KW | Three Phase | 10KWH/15KWH/20KWH | BYD Lithium ion Battery | All in one
Datasheet SNE8K-G3-AIN SNE10K-G3-AIN SNE12K-G3-AIN
DC Input
Max. power(kW) 12KW 15KW 18KW
Max. DC voltage(V) 1000V
MPPT voltage range(V) 180V-850V
Max.input current of single MPPT(A) 13A
MPPT tracker/strings 2/1
AC Output
Rated output power(kVA) 8KVA 10KVA 12KVA
Max. output current(A) 12.7A 15.9A 19.1A
Grid voltage/range(V) 400V /360V~440V
Frequency (Hz) 50 /60Hz
PF 1(0.8lagging-0.8leading)
THDI <3%
AC output topology 3W+N+PE
EPS Output
Rated power (kVA) 8.8KVA 11KVA 13.2KVA
Rated output voltage(V) 400Vac
Rated output current(A) 12.7A 15.9A 19.1A
Rated frequency (Hz) 50Hz /60Hz
Automatic switching time (ms) <20ms
THDU <2%
Overload capacity 110%, 30S/120%, 10S/150%, 0.02S
Battery  technical parameters
Battery type LiFePO4 battery(BYD original)
Battery voltage(V) 204.8V 307.2V 409.6V
Operating Voltage Range(V) 172.8V~224.64V 259.2V~336.96V 345.6~449.28V
Battery module(AH) 50AH 50AH 50AH
Battery Capacity(KWH) 10.24KWH 15.36KWH 20.48KWH
Rated charge/discharge current(A) 10~25A
Max. charge/discharge current(A) 50A
Communication interface CAN/RS485
Service Life 3500 times @80%DOD(25℃/77F)
General Data
Euro Efficiency 97.2% 97.5% 97.5%
MPPT Efficiency 99.5% 99.5% 99.5%
Protection class IP20
Noise Emission (Typical) <60dB
Operation Temperature -10~+60℃
Cooling forced air cooling
Relative Humidity 15%~85%(non-condensing)
Altitude 2000m(>2,000 Derating)
Dimensions (W/D/H) mm 690*460*1314MM 690*460*1482MM 690*460*1650MM
Weight(kg) 193.6KG 252.1KG 312.6KG
Inverter Topology transformerless
Self-Consumption <3W
Display and communication
Display LCD
Interface:RS485/Wifi/LAN
/CAN/DRM
yes /opt/opt
/yes/yes
Safety standard IEC 62109-1&-2, IEC 62477, CE-EMC
