Single Phase Energy Storage System

SNE3K/3.6K/4K/4.6K/5K/6K-D1-A | 3-6KW | Single Phase | 4.8KWH-30KWH | Energy Storage System

Single Phase Energy Storage System

SNE3K/3.6K/4K/4.6K/5K/6K-D1-A | 3-6KW | Single Phase | 4.8KWH-30KWH | Energy Storage System

Single Phase Energy Storage System

SNE3K/3.6K/4K/4.6K/5K/6K-D1-A | 3-6KW | Single Phase | 4.8KWH-30KWH | Energy Storage System

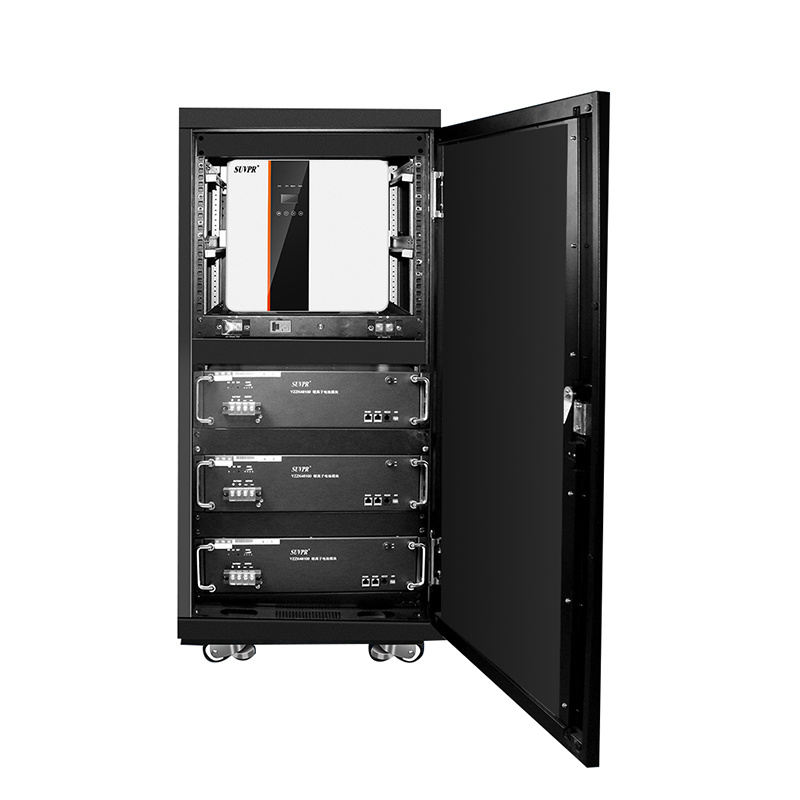

SUVPR Indoor cabinet ESS compatible with hybrid inverter 5kw, most 19-inch-rack-mounted 48V battery and battery management system(BMS) for residential energy storage system application . The capacity of the system can be flexibly configured between 4.8kWh ~30.72kWh, it has a cycle life of more than 10 years and is suitable for installation in villas, office areas and other scenarios.

Category：Residential Energy Storage Systems

single phase hybrid inverter

storage inverter

battery storage inverter

Message

Download

Product Features

Flexible configuration

Modular design, easy installation and operation
Support battery expansion

Safe and reliable

System cycle life ≥ 10 years
Support peak load shifting and important load backup

Advanced

Integrated BMS management system to support intelligent management
Compatible with CANbus/RS485 communication interface

Benefits

● Integrated design for easy installation
● Highly cost-eﬀective
● Support mainstream hybrid inverters
● Capacity can be ﬂexibly conﬁgured
● Support 7*24 remote service

Benefits

● Solar House
● Telecom Base Station
● Solar Plus Storage
● Farm
● Residential Rooftop
● Field Power Supply

Benefits

SNE3K/3.6K/4K/4.6K/5K/6K-D1-A | 3-6KW | Single Phase | 4.8KWH-30KWH | Energy Storage System

Application

● Integrated design for easy installation
● Highly cost-eﬀective
● Support mainstream hybrid inverters
● Capacity can be ﬂexibly conﬁgured
● Support 7*24 remote service

Application

● Solar House
● Telecom Base Station
● Solar Plus Storage
● Farm
● Residential Rooftop
● Field Power Supply

Application

SNE3K/3.6K/4K/4.6K/5K/6K-D1-A | 3-6KW | Single Phase | 4.8KWH-30KWH | Energy Storage System

Model	SNE3K-D1-A	SNE3.6K-D1-A	SNE4K-D1-A	SNE4.6K-D1-A	SNE5K-D1-A	SNE6K-D1-A
Input (PV)
Max. Input Power	4600W	4600W	6000W	6000W	7000W	7000W
Max. PV Voltage（V）	550V
MPPT Voltage Range（V）	125~550V
Max.input current of single MPPT(A)	14A
MPPT Tracker/Strings	2/1
AC Output
Rated output power（W）	3000W	3600W	4000W	4600W	5000W	5600W
Rated output Current（A）	13A	16A	17.4A	20A	21.7A	26A
Rated grid voltage(v)	230Vac
Grid voltage range（V）	176Vac~270Vac
Frequency (Hz)	50Hz/60Hz
THDI	<3%
PF	0.8lagging-0.8leading
AC output topology	L+N+PE
EPS Output
Rated power (VA)	3000VA	3600VA	4000VA	4600VA	5000VA	6000VA
Rated output current(A)	13A	16A	17.4A	20A	21.7A	26A
Rated output voltage(V)	230V
Rated frequency (Hz)	50Hz/60Hz
Automatic switching time (ms)	<20ms
THDU	<2%
Overload capacity	110%, 30S/120%, 10S/150%, 0.02S
Battery technical parameters
battery module	Customizable
Battery capacity	4.8kWh~30.72kWh
MAX. parallel batteries	6
Service Life	＞10years（25℃/77F）
Charge/Discharge Current	95/62.5A	95/76.6A	95/83.3A	95/95.8A	95/110A	95/110A
System parameters
Protection class	IP20
MPPT efficiency	99.90%
Max. effi ciency	97.60%
Self-consumption	＜ 3W
Interface:RS485/Wifi/4G/ CAN/DRM	yes /opt/opt/yes/yes
display	LCD
Operating temperature	-10°C~60°C
Cooling	forced air cooling
Relative Humidity	15%~85%（non-condensing）
Noise emission (dB)	<50dB
Altitude	2,000m(>2,000 Derating)
Dimensions (W/D/H) mm	6006001610mm/6006001833mm
Weight	Customized
Safety regulations	IEC 62109-1&-2, IEC 62477, CE-EMC
