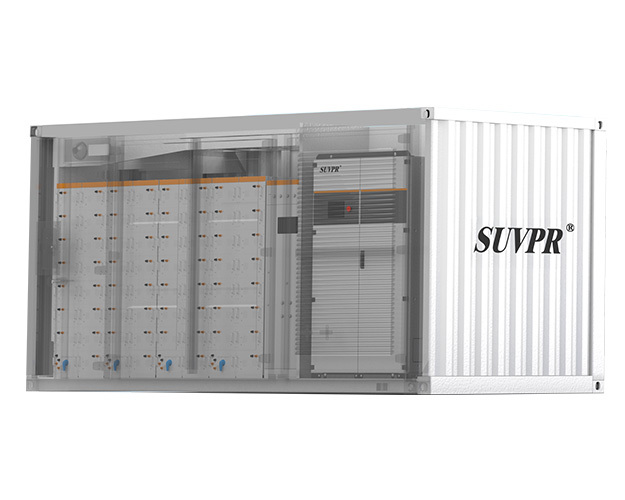

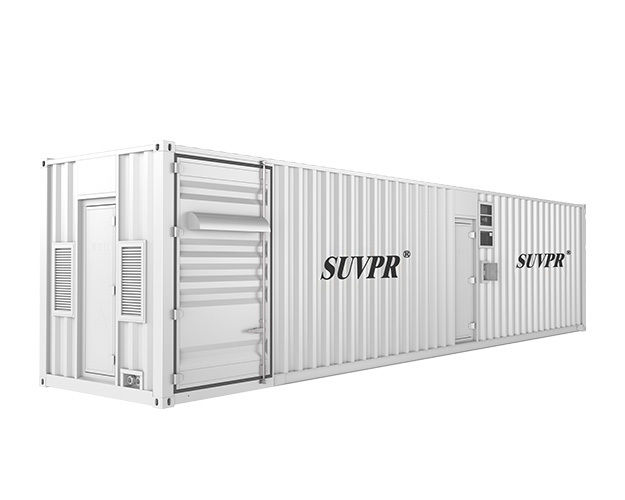

SNE-RESS AC-coupled 40ft Container Energy storage system

SNE-RESS AC-coupled 40ft Container Energy storage system

SNE-RESS AC-coupled 40ft Container Energy storage system


Category:C&I Energy Storage System

Product Features

Model SNE-RESS500K-1106M
DC data
Battery capacity (MWh) 1.106MWH
Number of battery racks 8
BMS communication interface RS485/CAN
DC voltage range (V) 600V~850V
AC data
Rated AC power(kW) 500KW
Max. AC power(kW) 550KW
Rated AC current(A) 722A
Max. AC current(A) 800A
DC current component < 0.5 %
THDi <3% (Rated power)
Rated grid voltage(V) 400V
Allowable grid voltage range(V) 320V-460V
Rated grid frequency(Hz) 50/60Hz
Allowable grid frequency range 45-55/55-65Hz
Power factor 1lagging-1leading
Isolation method No isolation
General data
Ingress protection IP54
Fire extinguishing system support
Running time (full power) 2h
Operating temperature 30+55
Dimension W*D*H (mm) 12192 ×2438×2896mm
Weight (T) 3.5T
BMS communication RS485, CAN
EMS communication RS485, TCP/IP
PCS cooling way Temperature control intelligent air cooling
Battery cooling way Air conditioning cooling
Altitude 4,500m(>3,000 Derating)
Relative humidity 0 ~95% non-condensing



  Product features:

  Simple & flexible

  Standardized design, easy to expand and maintain

  Independent air duct design, more stable operation

  Safe & reliable

  Support battery management system and comprehensive thermal management

  Improve the fault classification protection mechanism

  Abundant configuration

  Diversified selection of equipment capacity

  Can be integrated with monitoring system



Model SNE-RESS500K-1106M
DC data
Battery capacity (MWh) 1.106MWH
Number of battery racks 8
BMS communication interface RS485/CAN
DC voltage range (V) 600V~850V
Photovoltaic input
Max.PV input voltage(V) 1000VDC
Max.PV power(kW) 600/660/720KW
MPPT voltage range(V) 200VDC-850VDC
MPPT voltage range@full load (V) 450VDC-850VDC
AC data
Rated AC power(kW) 500KW
Max. AC power(kW) 550KW
Rated AC current(A) 722A
Max. AC current(A) 800A
DC current component < 0.5 %
THDi <3% (Rated power)
Rated grid voltage(V) 400V
Allowable grid voltage range(V) 320V-460V
Rated grid frequency(Hz) 50/60Hz
Allowable grid frequency range 45-55/55-65Hz
Power factor 1lagging-1leading
Isolation method No isolation
General data
Ingress protection IP54
Fire extinguishing system support
Running time (full power) 2h
Operating temperature 30+55
Dimension W*D*H (mm) 12192 ×2438×2896mm
Weight (T) 3.5T
BMS communication RS485, CAN
EMS communication RS485, TCP/IP
PCS cooling way Temperature control intelligent air cooling
Battery cooling way Air conditioning cooling
Altitude 4,500m(>3,000 Derating)
Relative humidity 0 ~95% non-condensing



  Product features:

  Simple & flexible

  Standardized design, easy to expand and maintain

  Independent air duct design, more stable operation

  Safe & reliable

  Support battery management system and comprehensive thermal management

  Improve the fault classification protection mechanism

  Abundant configuration

  Diversified selection of equipment capacity

  Can be integrated with monitoring system
