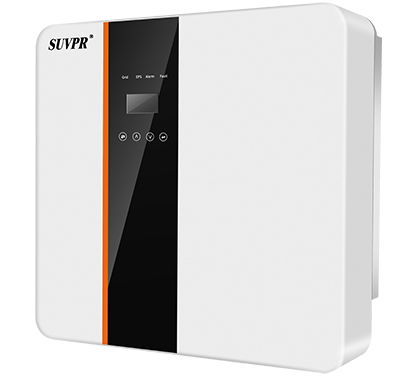

Hybrid Inverters

Hybrid Inverters

Hybrid Inverters


Hybrid and Battery Inverters is an intelligent inverter that enables the storage of excess solar energy in a battery system for self-use. Worked with batteries energy storage systems, has the features of off-grid function, grid-tie function, and micro-grid function. Through advanced technology, we are providing reliable and compatible power storage and micro grid solutions to our customers.

Category:Residential Energy Storage Inverter

Product Features

Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB3000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 4600 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  3000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/62.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  3000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999



Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB5000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 7000 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  5000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/104.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  5000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999



Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB3000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 4600 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  3000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/62.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  3000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999



Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB5000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 7000 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  5000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/104.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  5000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999








Reliable

* Battery reverse connection protection

* Compatible with anti-countercurrent function

* Discharge at full power, automatically disconnect the charger when the battery is full




Flexible

* Wide input voltage range

* Compatible with lead acid and lithium batteries and other battery type


Advanced

* Home smart energy management system

* Power dispatch and demand response management​

* Distributed virtual power station management


Elegant

* Fashion appearance, lightweight and simple

* Natural cooling, quiet with only 35dB noise

*  Compact design with IP65 casing for outdoor use

*  Simplified wall mounting








Working Principle










Single&Three Phase Hybrid Inverters

It functions like a common grid tie inverter but can generally operate in one of several different modes depending on the application, this includes battery backup mode which provides backup power in the event of a blackout. Hybrid inverters are a very affordable choice for average households who want to be more self-sufficient using solar energy and batteries but don't intend on disconnecting from the grid and do not experience frequent blackouts.

* Solar House          * Telecom Base Station          * Solar Plus Storage

* Farm                      * Residential Rooftop            * Field Power Supply








NK-LB3000P1/NK-LB3600P1/NK-LB4000P1/NK-LB4600P1/NK-LB5000P1/NK-LB6000P1

Single phase hybrid inverters solar 3KW/3.6K/4KW/4.6K/5KW/6KW

MPPT voltage range / rated input voltage:125 V to 500 V

Battery Voltage: 40V-58Vdc

AC voltage:230Vac/176V-270V

Frquency:50/60Hz

Communication Port: CAN/RS485

DOWNLOAD THE DATASHEET










NK-LB8000P3/NK-LB10000P3/NK-LB12000P3

hybrid inverter 3 phase 8KW/10KW/12KW

MPP voltage range / rated input voltage:180 V to 850 V

Battery Voltage: 125V-600Vdc

Nominal AC voltage:400Vac/360V-440Vac

Frquency:50/60Hz

Communication Port: CAN/RS485





DOWNLOAD THE DATASHEET
