Power Conversion System(without transformer)

Power Conversion System(without transformer)

Power Conversion System(without transformer)


Power Conversion Systems (PCS) inverter are a crucial part of any energy storage system ESS. They help maximise the availability, value and performance of large or small energy storage systems. Our LB series 500K~630K battery pcs inverter is a battery power conversion system that converts the DC (direct current) supplied by a battery into grid-compliant AC (alternating current). This kind of energy storage pcs inverter can be used in the on-grid mode and off-grid mode.

Category:Commercial&Industrial Energy Storage Inverter

Product Features

Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB3000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 4600 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  3000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/62.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  3000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999



Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB5000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 7000 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  5000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/104.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  5000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999



Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB3000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 4600 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  3000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/62.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  3000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 13 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999



Product Features

Flexible Elegant Reliable
* Wide input voltage range * Fashion appearance, lightweight and simple * Battery reverse connection protection
* Compatible with lead acid and lithium batteries and other battery type * Natural cooling, quiet with only 35dB noise  * Compatible with anti-countercurrent function
  *  Compact design with IP65 casing for outdoor use  * Discharge at full power, automatically disconnect the charger when the battery is full
  *  Simplified wall mounting



Advanced

* Home smart energy management system

* Power dispatch and demand response management

* Distributed virtual power station management



Technical Data:NK -LB5000P1



DC Input(Solar)

Max. DC power (@cosφ=1) 7000 Wp STC
Max. input voltage 550 V
MPP voltage range / rated input voltage 125 V to 500 V / 360 V
Initial input voltage  120V
Max. input current per string  14A /14A
No. of independent MPPT inputs / strings per MPPT input 2/1



AC Output

Rated power  5000VA
Nominal AC voltage / range 230V / 176V-270V
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7A
Power factor at rated power 1
Adjustable displacement power factor 0.99 lagging to 0.99 leading
THDI < 3%
Type of grid connection L+N+PE



Battery Data

Battery Voltage Range 40V-58V
Max. Charge Voltage 58V
Max. Charge/Discharge current 95A/104.2A
Battery Type Lead-acid/Lithium/LiFePO4 batterty
Communication interface CAN



Emergency power output(EPS)

Rated power  5000VA
Nominal AC ouput voltage 230Vac
AC power frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current 21.7 A
Automatic switch time <20ms
THDU <2%
Overload capacity 110%,60S/120%,30S/150%,10S



General Data

Battery charge and discharge efficiency 95%
Max. efficiency / European Efficiency 97.6%/97%
MPTT efficiency 99.90%
Degree of protection IP65
Noise emission (typical) < 35 dB(A)@1m
Operating temperature range -25°C … +60°C
Cooling concept  Natural cooling
Relative humidity (non-condensing)  0-95% no condensation
Max. operating altitude 4000m (>2000m derating)
Dimensions (W x H x D) 550 / 200 / 515 mm
Weight 26 kg
Topology transformerless
Self-consumption (night) < 3W



Display and Commumication

Display LCD
Communication RS485/wifi/GPRS/CAN/DRM Yes/optional/optional/yes/yes
Certificates and approvals CE/TUV/SAA/IEC62116:2014/IEC61683:1999








Reliable

* Using high performance DSP,  more stable and effective

* AC/DC Dual Power Backup to ensue power supply for control system

* Transformer-less & high efficiency

* Integrated protective and safety features, including AC output breakers, DC disconnect switches


Flexible

* Modular ACDC/DCDC bi-directional PCS

* Modular designed cabinet

* Indoor or Outdoor container design


Compatible

* Compatible with grid-tied and microgrid environments and is used with both battery energy storage

* Integrated grid&off-grid automatic switching components, save the user's system costs

* Flexible communication mode , receive BMS instructions in real time




AC Coupled










AC Coupled Battery Storage Inverter with Transformer-less

* PV charging station    * Wind power storage    * Combined thermal power FM

* Utility scale energy storage    * PV station

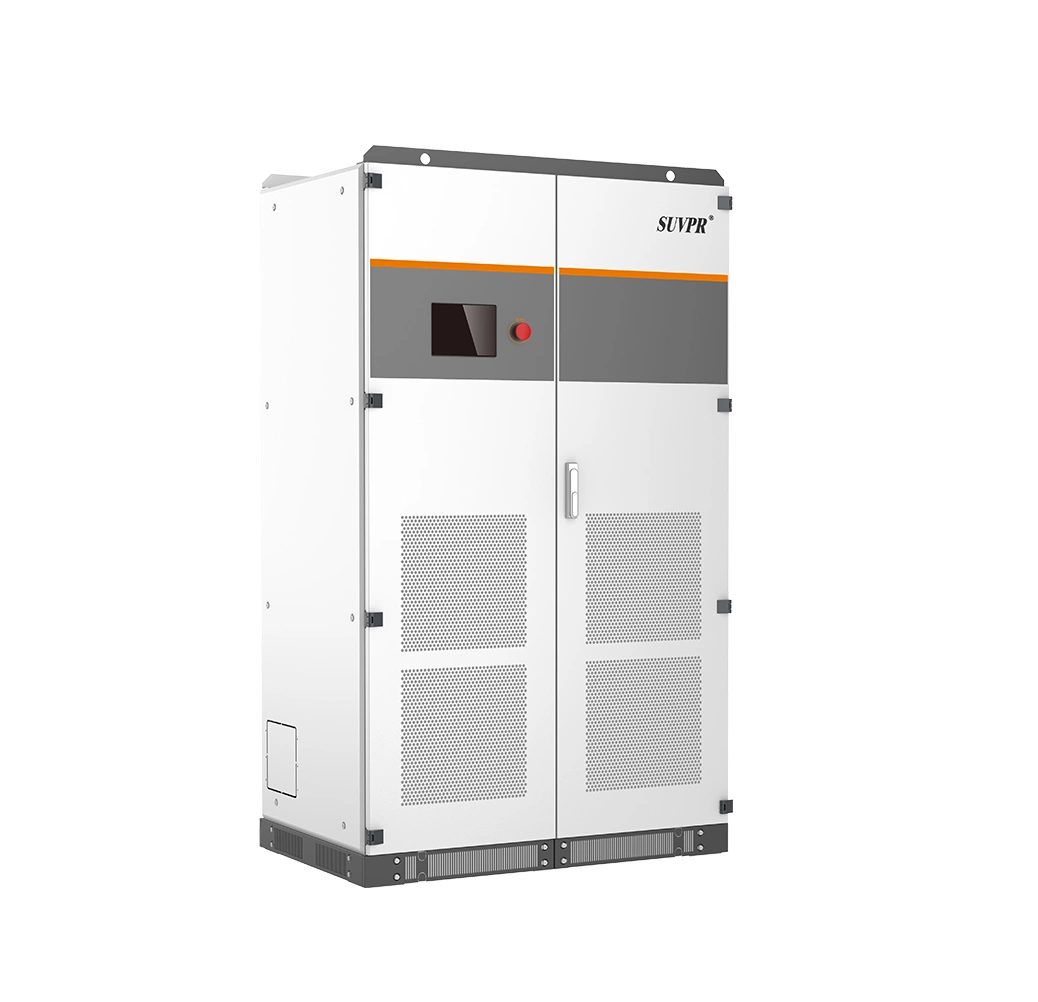

LB-500K/LB-630K

Energy Storage PCS Inverter with transformer-less 500KW/630KW

Battery voltage range:600V~900V dc

AC Voltage: 400Vac/320Vac~460Vac

AC Frequency:50/60Hz

* Modular design and wide power range in single cabinet

* Bi-directional Power Conversion System

* Built-in transformer for direct grid connection

* Grid-support functions

* Support various battery
